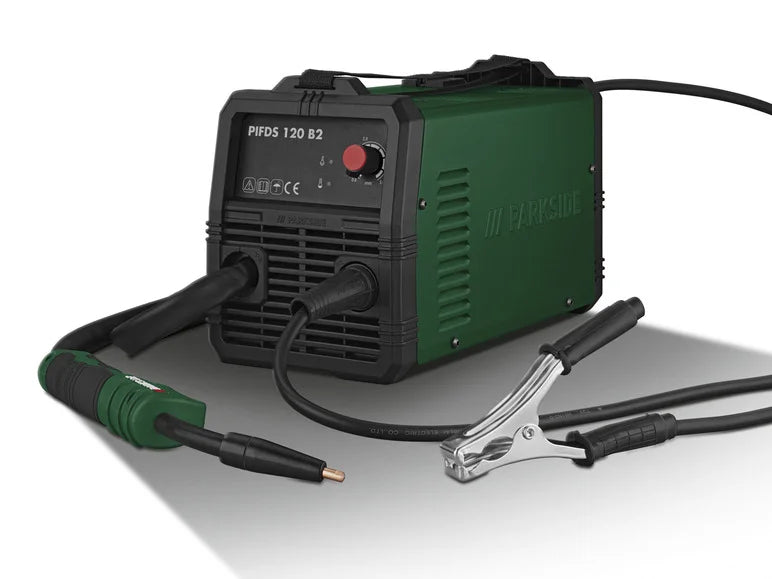

PARKSIDE® PIFDS 120 B2 Inverter Welding Station

PARKSIDE® PIFDS 120 B2 Inverter Welding Station

Features

• Lightweight thanks to Inverter technology - ideal for mobile use
• Compact and efficient equipment with low energy consumption l
• Better electric arc regulation and optimum welding results - even for inexperienced users
• Works without the use of protective gases
• Synergistic rotary button for easy adjustment to material thickness (0.8 - 3 mm)
• Automatic adjustment of weld current and wire reeling
• Fan cooling and overload protection via thermostat with light
• 2 m welding cable with interchangeable nozzles (for Ø 0.6 / 0.8 / 0.9 / 1.0 mm)
• 2 m mass cable with powerful clamp
• Robust box with transport strap
• Welding process: Welding with welded wire

Accessories included:0.45 kg of feed wire (0.9 mm), 1 torch nozzle (pre-installed), 4 welding nozzles (1 pre-installed), 1 welding shield, 1 slag hammer with metal brush, 1 transport strap

Technical specifications

Sector connection: 230 V - 50 Hz
Vacuum voltage: 22 V

• Welding current: maximum 20A/15V - 120A/20V
• Continuously adjustable welding current: 20-120 A
• Compatible welding wire diameters: 0.6/0.8/0.9/1.0 mm
• Recommended material thickness: 0.8 to 3.0 mm
• Length of power cord: 4 m
• Welding cable: 2 m (1 x 10 mm2)
• Mass cable with clamp: 2 m (1 x 10 mm2)

Equipment

Steel, plastic and stainless steel sheet

Dimensions

approximately 33.1 x 16.1 x 19.9 cm

Weight

• Wired solder post: approximately 4.2 kg
• Mass cable with clip: approximately 345 g
• Welding screen: approximately 155g
• Metal brush combined with hammer: about 62g

Comments

l 20% less energy consumption than a welding plant with transformer
