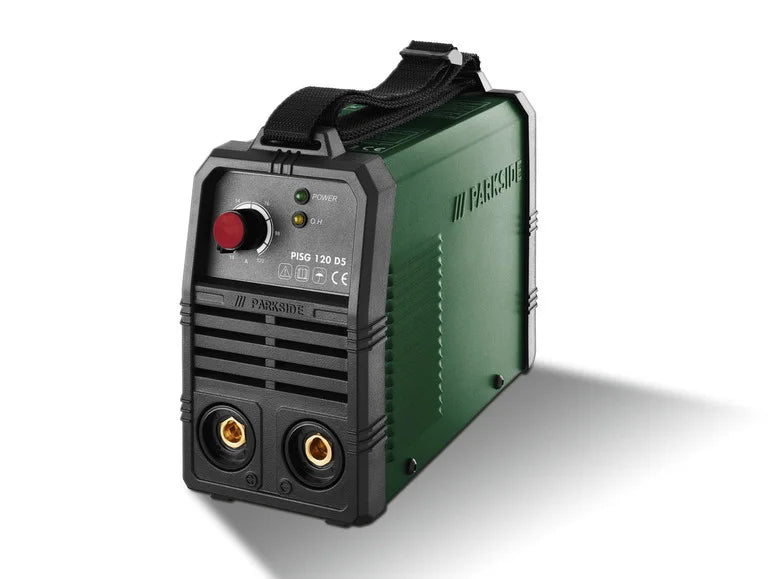

PARKSIDE® Inverter welding station, PISG 120 D5

PARKSIDE® Inverter welding station, PISG 120 D5

Features

• Innovative inverter technology for better welded seals than traditional appliances
• Uniform union of steel, stainless steel and cast materials
• Lightweight - ideal for mobile use
• Electronically regulated welding arc, calm and homogeneous
• With greater tolerance to position changes - electric arc remains stable longer
• Thermostat overload protection with control light
• 2.0 m welding cable with electrode holder (for Ø 1.6-2.5 mm)
• 2.0 m earth cable with powerful clamp
• Thermoplated metal housing with length adjustable transport strap
• Integrated fan
• Suitable for all standard stainless steel, cast iron and base bar electrodes

Accessories included:1 welding screen, 1 metal brush combined with a hammer, 5 welding electrodes (sizes: 2 x 1.6 mm; 2 x 2.0 mm and 1 x 2.5 mm), 1 transport strap

Technical specifications

• Input power: 3,300 W (at 230 V)
• Vacuum voltage: 66 V
• Welding current: maximum 10 A / 18.4 V - 120 A / 22.8 V
• Continuous adjustment range 10 - 120 A
• CEM class A
• Electrode thickness: 1,6 - 2.5 mm
• Welding material thickness: 1.5 - 3.0 mm
• Length of power cord: 4 m
• Welding cable with electrode holder: 2 m
• Mass cable with clamp: 2 m

Equipment

Steel sheet, plastic, stainless steel

Dimensions

• Welding material: approximately 24 x 9.7 x 17.8 cm
• Panel with handle mounted: approximately 34.5 x 19.6 x 6 cm
• Hammer with brush: approximately 17,8 x 2,1 x 6,7 cm

Weight

• Welding equipment: approximately 2,250 g
• Slag hammer with brush: approximately 62 g
• Shield with mounted handle: approximately 155g

Comments

This Class A welding equipment is not intended for use in residential areas where the power supply is provided by a low voltage public system. Electromagnetic compatibility in these areas may be difficult due to conduction and radiation interference.
