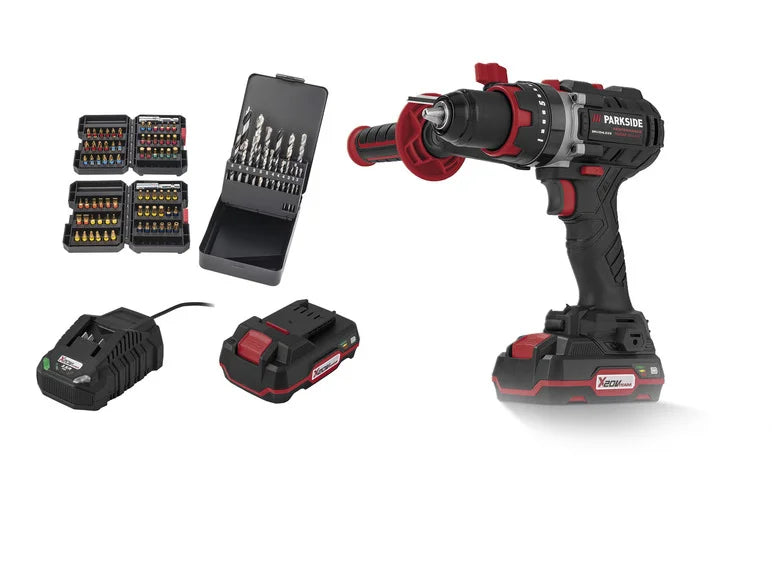

PARKSIDE PERFORMANCE® Cordless percussion drill PSBSAP 20-Li C3, 20 V

PARKSIDE PERFORMANCE® Cordless percussion drill PSBSAP 20-Li C3, 20 V

Features

• Complete set of percussion drills comprising 2 batteries (2 Ah), a charger (3.5 A) and 98 accessories
• Motor with 2-speed gear and activating percussion mechanism
• Engine without brush (Brushless engine) - long service life due to reduced wear
• 20 V (2 Ah) lithium-ion batteries with 3-level LED status indicator
• Cell Balancing - extended battery life, extended life
• Higher battery life thanks to homogeneous cell loading
• Maximizes the load potential
• When using PARKSIDE X 20 V PAPS smart batteries: maximum performance thanks to individual appliance configuration and data control via Parkside App
• Appliance with LED Smart App lit in case of active connection
• Quick-clamp metal mandrel with radial locking - Röhm Extra 60
• Automatic locking of SPINDLE LOCK pin
• Right/left rotation
• Continuously adjustable rotation speed with Quickstop function
• Integrated LED work lamp for optimal lighting of the working area
• Softgrip non-slip coating
• Additional adjustable 360° swivel handle - with metal depth stop
• Magnetic tip holder at the back
• Practical belt clamp with decapsulator function
• Charger with automatic charging stop and LED charge indicator
• In a box with aluminum frame, drawer and metal closures
• Apparatus compatible with all PARKSIDE X 20 V Team series batteries

Accessories included: 1 additional handle, 1 deep stop, 1 cutter (with 8 blades), 1 meter (3 m), 1 ratchet screwdriver (1⁄4"), 1 screwdriver tip holder (1⁄4"), 6 wood drills, 6 metal drills, 6 stone drills, 2 tip holders (60 mm), 72 bits

Technical specifications

• Batteries: 20 V lithium-ion (2 Ah)
• Torque levels: 21 + 1 drilling position + 1 percussion drilling position
• Couple: máximo 64 Nm
• Rotation speed: 1a speed 0 - 630 rpm / 2a speed 0 - 2100 rpm
• Impact speed: 1a speed 0 - 10810 rpm / 2a speed 0 - 36000 rpm
• Clamping range of the mandrel: 1.5 - 13 mm
• Drilling diameter: máximo 68 mm madera / máximo 16 mm exceptigón / máximo 13 mm in acero
• Recommended Smart Battery: PAPS 204 A1 (20 V / 4 Ah)

Materials

Steel, plastic

Dimensions

• Clamp of the extended (closed) percussion drill (with battery) without additional handle, belt clip and depth stop): approximately 21.8 x 24.8 x 8.6 cm
• Percussion screwdriver extended (closed) (without battery): without adicional mango, cinturón clip y tope de profundidad): approximately 21.7 x 21 x 8.2 cm
• Additional handle: approximately 26.5 x 8.8 x 7.3 cm
• Battery: approximately 12.6 x 8.6 x 5 cm
• Charger: approximately 7 x 15.4 x 9.5 cm

Weight

• Percussion drill (with battery): approximately 1,885 kg
• Percussion drill (without battery): approximately 1.45 kg
• Additional handle: approximately 205 g
• Metal depth stop: approximately 54 g
• Battery: about 440 g
• Charger: approximately 384 g
