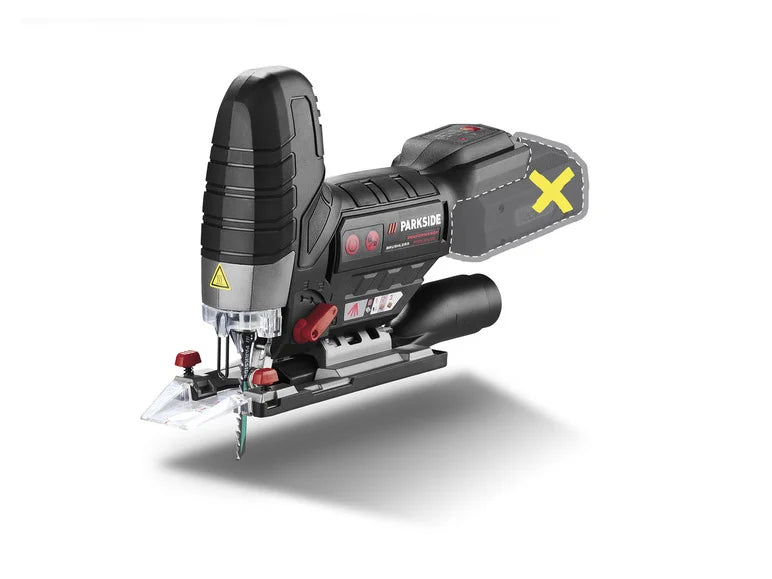

PARKSIDE PERFORMANCE® Cordless jumping saw, PSSPA 20-Li D3, 20 V

PARKSIDE PERFORMANCE® Cordless jumping saw, PSSPA 20-Li D3, 20 V

Features

• Motor without broom (Brushless Engine) - long service life due to reduced wear
• When using PARKSIDE X 20 V PAPS smart batteries: optimal performance thanks to the individual appliance configuration and data tracking via the PARKSIDE application
• Powerful appliance with input and control panel: number of strokes, automatic mode, thermal detector, battery condition and Smart-App LED
• Fast advance of the saw thanks to the adjustable pendulum movement on 3 levels
• Cutting adjustment without pendulum movement
• Number of races adjustable on 7 levels: 6 levels selectable + 1 automatic
• 5 selectable cutting angles
• Integrated LED work lamp with 2 advanced functions: 1. lighting before starting the machine, 2. tracking lighting
• With change system for easy replacement of saw blade
• Cutting line without chips thanks to blowing function
• Connection for external dust extraction - adapter included
• Transparent saw protection, chip removal protection and line guide adapter
• Softgrip non-slip coating
• Plastic sole end protecting the surface
• Includes 3 saw blades (Swiss Made)
• In a storage case
• Apparatus compatible with all PARKSIDE X 20 V Team series batteries
• Delivered without battery or charger

Accessories included: 2 Swiss Made wood blades, 1 Swiss Made metal blade, 1 parallel guide, 1 line guide adapter (pre-assembled) 1 external dust suction adapter (pre-assembled), 1 reducer (pre-assembled)

Technical specifications

• Carrera speed: 800 - 3800 rpm (7 levels)
• Carrera length: 26 mm
• Etapas del movimiento pendular: 1 - 3 y fine cut adjustment 0
• Ángulo derecha/izquierda cut: 0° / 22,5° / 45
• Cutting Profundidad: máximo 135 mm madera - máximo 20 mm in metal no ferreos - máximo acero (blando) 10 mm
• Battery recomendada: 20 V, 4 Ah - Smart PAPS 204 A1
• Recomendado charger: 12 A - Smart PLGS 2012 A1

Materials

Plastic, aluminium

Dimensions

approximately 25.6 x 7.7 x 19.5 cm (without battery / blade)

Weight

• Cordless jumping saw: about 1,542 kg (without battery / hoja)
• Wood blade (2 pieces): about 15 g
• Metal blade (1 piece): approximately 3.9 g
• Parallel guide: approximately 82,3 g
• Line Guide Adapter: about 5.6 g
• Reducer: approximately 13.4 g
