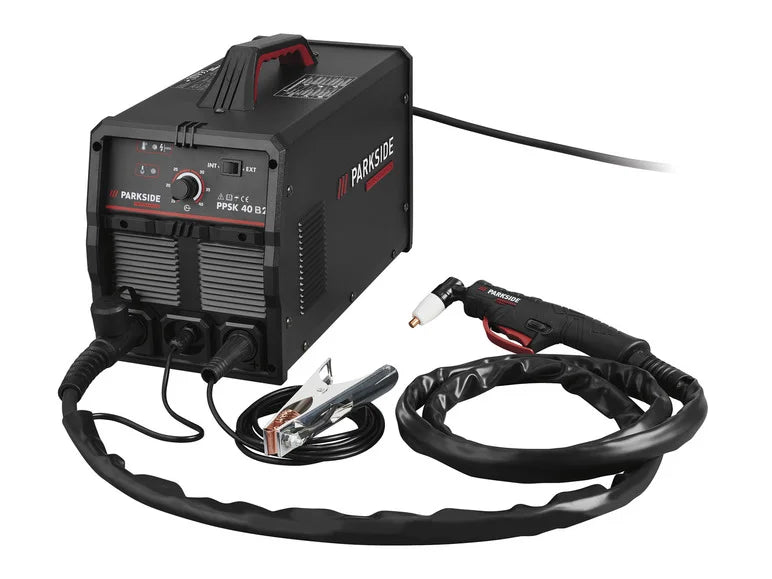

PARKSIDE PERFORMANCE® plasma cutter with PPSK 40 B2 compressor

PARKSIDE PERFORMANCE® plasma cutter with PPSK 40 B2 compressor

Features

• Integrated compressor – no external compressed air supply required
• Fully pre-assembled and ready to use immediately
• Mobile – compact and lightweight
• Regular and accurate plasma jet with electronic adjustment
• For precise and clean cuts up to 12 mm thick
• Suitable for cutting steel, iron, stainless steel, aluminum and copper
• Continuously adjustable cutting current (15 to 40 A)
• Cutting cable with interchangeable flashpoints and removable wheel guide (total torch length and cable: 2.5 m)
• Mass cable (2 m) with powerful clamp
• 2 m compressed air hose with quick connection system
• Active cooling by electric fan
• Overload protection thanks to thermal probe with light indicator
• lacquered steel case with ergonomic handle
• Additional compressed air input for alternative power supply via external compressor
• Rated voltage: 230 V / 50 Hz

Accessories included:3 nozzles (1 pre-assembled), 3 electrodes (1 pre-assembled), 1 guide with castors, compressed air tube with quick connection system, earth terminal with 2 m (10 mm2) cable, torch with cutting cable (total length 2.5 m)

Technical specifications

• Cutting process: plasma jet with electronic adjustment
• Cutting current: 15 - 40 A
• Maximum cutting capacity: 12 mm steel / 10 mm iron / 8 mm stainless steel / 8 mm aluminium / 4 mm copper
• Compressed air supply: integrated compressor
• Operating pressure with external compressor: 4-4.5 bar
• Rated voltage: 230 V / 50 Hz
• Cable length: about 2 m

Equipment

Steel plate

Dimensions

Approximately 34.1 x 22.3 x 24.4 cm

Weight

Approximately 9.8 kg

Warning

This Class A welding equipment is not intended for use in residential areas where the power supply is provided by a low voltage public system. Conducted and radiated interference can make it difficult to guarantee electromagnetic compatibility in these areas.
