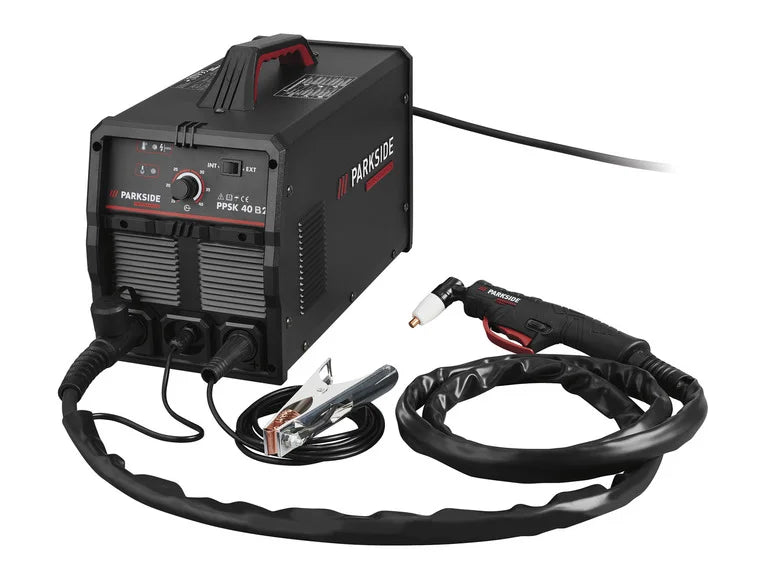

PARKSIDE PERFORMANCE® Plasma cutter with compressor PPSK 40 B2

PARKSIDE PERFORMANCE® Plasma cutter with compressor PPSK 40 B2

Features

• Integrated compressor – no external compressed air supply required
• Fully pre-assembled and ready for use
• Mobile – compact and lightweight
• Regular and accurate plasma jet with electronic adjustment
• For precise and clean cuts up to 12 mm thick
• Suitable for cutting steel, iron, stainless steel, aluminium and copper
• Continuously adjustable cutting current (15 to 40 A)
• Cutting cable with interchangeable torch tips and removable roller guide (total torch and cable length: 2.5 m)
• Mass cable (2 m) with powerful clamp
• 2 m compressed air hose with quick connection system
• Active cooling by electric fan
• Overload protection thanks to thermal probe with light indicator
• lacquered steel case with ergonomic handle
• Additional compressed air input for alternative compressed air supply via external compressor
• Rated voltage: 230 V / 50 Hz

Accessories included: 3 nozzles (1 pre-assembled), 3 electrodes (1 pre-assembled), 1 roller guide, compressed air hose with quick connection system, grounding terminal with 2 m (10 mm2) cable, torch with cutting cable (total length 2.5 m)

Technical specifications

• Cutting process: plasma jet with electronic adjustment
• Cutting current: 15 - 40 A
• Maximum cutting capacity: steel 12 mm / iron 10 mm / stainless steel 8 mm / aluminium 8 mm / copper 4 mm
• Compressed air supply: via integrated compressor
• Operating pressure when using an external compressor: 4-4.5 bar
• Rated voltage: 230 V / 50 Hz
• Cable length: about 2 m

Material

Steel plate

Dimensions

Approximately 34.1 x 22.3 x 24.4 cm

Weight

Approximately 9.8 kg

Warning

This Class A welding equipment is not intended for use in residential areas powered by a low voltage public network. Conducted and radiated interference can make it difficult to guarantee electromagnetic compatibility in these areas.
