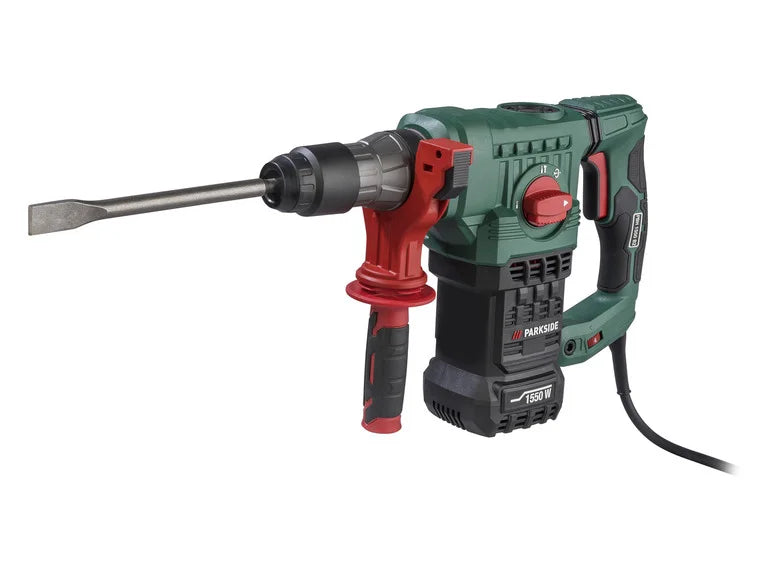

PARKSIDE® Perforator hammer and buriner PBH 1550 B2, 1550 W

PARKSIDE® Perforator hammer and buriner PBH 1550 B2, 1550 W

Features

• For drilling work with or without percussion or burining
• Effective impact energy: max. 5 J
• For concrete, stone, metal or wood
  Central selector for all functions:
  • Drilling – without percussion
  • Percussion drilling – percussion activated
  • Burinage – activating percussion with rotating stop
• Quick change mandrel SDS-Plus
• Continuously adjustable burin orientation
• Rotation speed adjustable via a speed controller (6 levels)
• Overload clutch for safe decoupling of the drive in case of blockage of the drill
• 360° steerable front handle
• Adjustable depth stop
• Absorbing vibrations in the handle for protection during prolonged and intensive use
• Round rod drill gear (not suitable for drilling with percussion or burining)
• Main handle and front handle with soft anti-slip coating
• Light indicator of coal broom wear
• Increased durability thanks to replaceable brooms *
• In a storage case

Accessories included: 1x pointed burin (250 mm), 1x flat burin (250 mm), 3x SDS drills (12 x 160 mm, 16/18 x 250 mm), 50 g grease, 1x deep stop, 1x toothed mandrel, 1x mandrel key, 1x key for case cover

Technical specifications

• Connected power: 1550 W
• Impact energy: max. 5 J
• Vacuum rotation speed: 0 - 800 rpm
• Frequency of impact: 0 - 3900 ipm
• Drilling capacity: max. Ø 40 mm on wood / max. Ø 32 mm on brick and concrete / max. Ø 13 mm on steel

Materials

Steel, plastic

Dimensions

• Perforating hammer and buriner (including handle): approximately 25.7 x 38.5 x 11.5 cm
• Mandrin with SDS adapter: about 10.7 x Ø 4.2 cm
• Set of 3 drills: about 16 x Ø 1.2 cm / about 25 x Ø 1.6 cm / about 25 x Ø 1.8 cm
• Pointed burin: about 25 x Ø 1,4 cm
• Flat burin: about 25 x Ø 1,4 cm
• Depth stop: about 25 x Ø 0.65 cm
• Length of power cable: about 3 m

Weight

• Perforator hammer and buriner (including handle): approximately 4.9 kg
• Mandrin with SDS adapter (key included): approximately 350 g
• Set of 3 drills: about 500 g
• Pointed burin: about 227 g
• Flat burin: about 240 g
• Deep end: approximately 57 g

* Replacement coal brushes not included.
