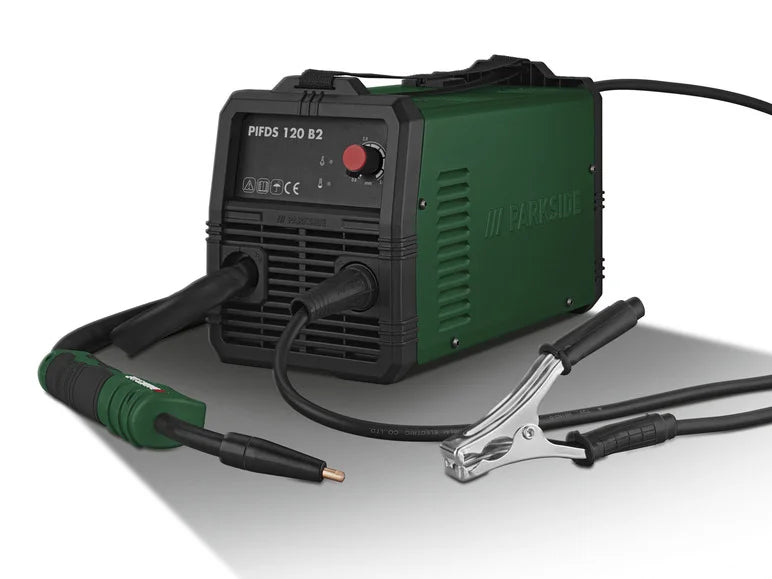

PARKSIDE® PIFDS 120 B2 inverter wire solder

PARKSIDE® PIFDS 120 B2 inverter wire solder

Features

• Light weight thanks to Inverter technology - ideal for mobile use
• Compact and efficient appliance with low energy consumption l
• Better electric arc regulation and optimum welding results - even for unexperienced users
• Works without protective gas
• Synergistic rotary button for easy adjustment depending on material thickness (0.8 - 3 mm)
• Automatic adjustment of welding current and wire advance
• Fan cooling and thermostat overload protection with control tell-tale
• 2 m welding cable with interchangeable nozzles (for Ø 0.6 / 0.8 / 0.9 / 1.0 mm)
• 2 m mass cable with powerful clamp
• Robust housing with transport strap
• Welding process: Welded wire

Accessories included: 0.45 kg of feed wire (0.9 mm), 1 torch nozzle (pre-installed), 4 welding nozzles (1 pre-installed), 1 welding shield, 1 slag hammer with metal brush, 1 transport strap

Technical specifications

Network connection: 230 V - 50Hz
Vacuum voltage: 22 V

• Welding current: máximo 20A / 15V - 120A / 20V
• Continuous forma welding current: 20-120 A
• Compatible welding wire diameters 0.6 / 0.8 / 0.9 / 1.0 mm
• Recommended material thickness: 0.8 - 3.0 mm
• Length of power cable: 4 m
• Welding wire cable: 2 m (1 x 10 mm2)
• Mass cable with clamp: 2 m (1 x 10 mm2)

Materials

Steel, plastic and stainless steel sheet

Dimensions

approximately 33.1 x 16.1 x 19.9 cm

Weight

• Welding station with cable: approximately 4.2 kg
• Mass cable with clamp: about 345 g
• Welding screen: approximately 155 g
• Metal brush combined with hammer: approximately 62 g

Remarks

l 20% less energy consumption than a welding station with transformer
