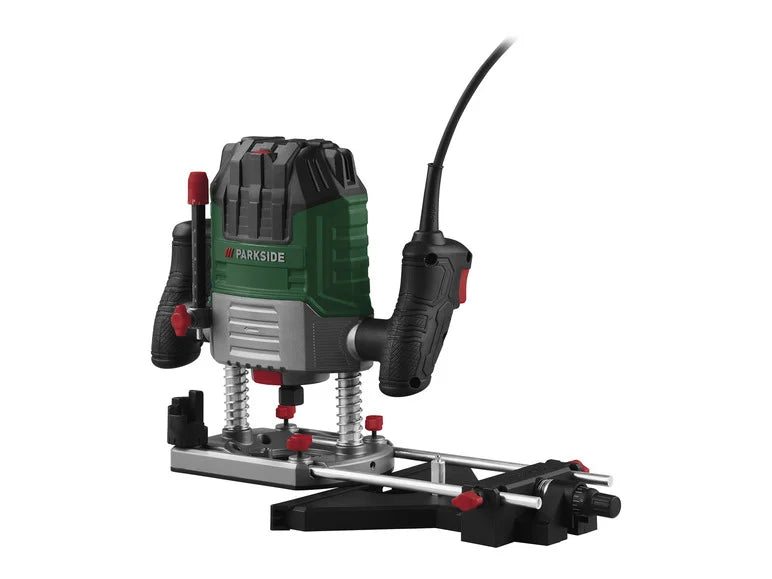

PARKSIDE® POF 1200 E4, 1200 W

PARKSIDE® POF 1200 E4, 1200 W

Features

• For versatile machining of wood, light construction materials and non-ferrous metals
• Continuously adjustable depth stop
• Parallel guide with fine tuning
• Fast selection of milling depth with drum stop 6 positions
• Continuously adjustable rotation speed
• Easy tool change thanks to integrated pin lock (SPINDLE LOCK)
• Copying ring for precise reproduction of cutting profiles
• Center point for circular cutting function
• Fast clamping lever for locking milling depth
• Connection for external dust extraction, adapter and reducer included
• Compatible with PARKSIDE PDB 12 and current 6 or 8 mm tail market strawberries

Accessories included: set of 6 wood cutters, 2 clamps (6 and 8 mm, including a pre-mount), 1 parallel guide with fine adjustment, 1 copying ring, 1 centring tip, 1 adapter for outdoor dust suction with gearbox, 1 flat key, 1 Allen key

Technical specifications

• Connected power: 1200 W
• Vacuum rotation speed: 11000-30000 rpm
• Milling head stroke: 55 mm
• Tool holder: 6 and 8 mm
• Length of power cable: about 4 m

Materials

Plastic, aluminium

Dimensions

• Threader: approximately 25.67 x 12.5 x 25.5 cm
• Parallel guide: about 21 x 20.6 x 40.8 cm
• Reducer (suction): approximately Ø 3.5 x 4.5 x Ø 36 cm
• Center mandrel: approximately Ø 1 x 4,1 cm
• Sliding axis with parallel guide screws (2 pieces): approximately Ø 0.8 x 30 cm
• Copying ring: approximately 6 x 3.65 x 1.34 cm

Weight

• Threader: approximately 2,675 kg
• Parallel guide: about 305 g
• Strawberries (6 pieces): approximately 140 g
