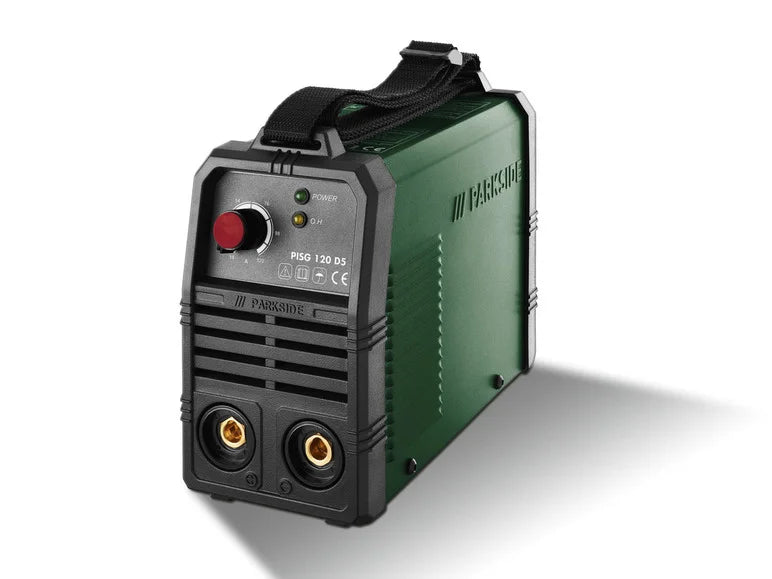

PARKSIDE® Inverter welding station, PISG 120 D5

PARKSIDE® Inverter welding station, PISG 120 D5

Features

• Innovative Inverter technology for superior welded assemblies compared to traditional devices
• Uniform assembly of steel, stainless steel and cast iron
• Reduced weight - ideal for mobile use
• Electronically regulated welding arc, calm and homogeneous
• With greater tolerance to position changes - electric arc remains stable longer
• Thermostat overload protection with control light
• 2.0 m welding cable with electrode holder (for Ø 1.6-2.5 mm)
• 2.0 m mass cable with powerful clamp
• Powder coated metal housing with length adjustable transport strap
• Integrated fan
• Compatible with all standard stainless steel electrodes, cast iron and basic rod

Accessories included: 1 welding screen 1 metal brush combined with hammer, 5 welding electrodes (sizes: 2 x 1.6 mm; 2 x 2.0 mm and 1 x 2.5 mm), 1 transport strap

Technical specifications

• Input power: 3,300 W (at 230V)
• Vacuum voltage: 66 V
• Welding current: maximum 10 A /18.4 V - 120 A / 22.8 V
• Continuous adjustment range 10 - 120 A
• CEM class A
• Electrode thickness: 1,6 - 2.5 mm
• Material thickness that can be welded: 1.5 - 3.0 mm
• Length of power cable: 4 m
• Welding cable with electrode holder: 2 m
• Mass cable with clamp: 2 m

Materials

Steel sheet, plastic, stainless steel

Dimensions

• Welding apparatus: approximately 24 x 9.7 x 17.8 cm
• Panel with handle mounted: approximately 34.5 x 19.6 x 6 cm
• Hammer with brush: approximately 17,8 x 2,1 x 6,7 cm

Weight

• Welding apparatus: approximately 2.250 g
• Slag hammer with brush: approximately 62 g
• Screen with mounted handle: approximately 155 g

Remarks

This Class A welding apparatus is not intended for use in residential areas where power is supplied by a low voltage public network. It may be difficult to ensure electromagnetic compatibility in these areas due to conductive and radiated interference.
